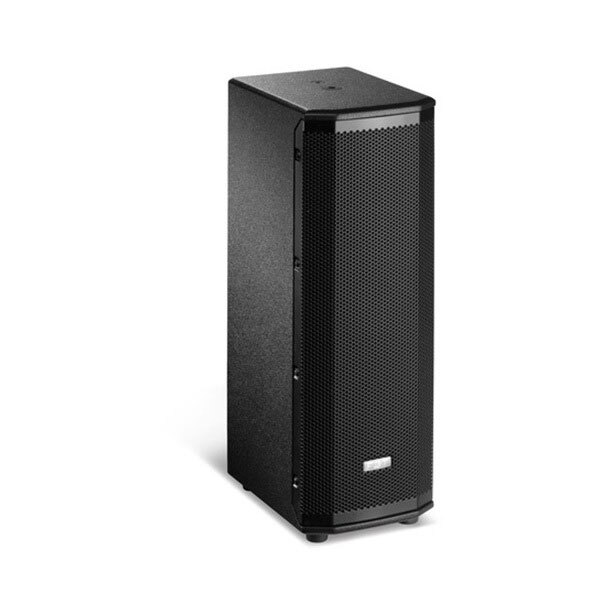

FBT Ventis 206

Passive Speaker Hire

The Ventis 206 is part of the Ventis range which are ideal for portable performance or fixed installation. This passive speaker Features two 6.5″ woofer sand a 1″ rotatable horn .Recommended amplifer of 400 W at 8? will deliver 129 dB SPL connections via 2x Speakon NL4 In + Thru. All housed in a 15mm Baltic birch ply cabinet with 35mm pole mount and a full length grille.

Please Enquire for Prices
Enquire
Category:

Technical Specification

For the VENTIS range, quality and flexibility are the watchwords. Based on a powerful combination of B&C compression drivers and FBT’s own custom, long excursion woofers, the 115, 112 and 110 models are two-way, bass reflex designs housed in 15mm birch plywood. A full-grille design backed by specially treated acoustic cloth delivers the characteristic style for which FBT is known, while fully rotatable constant directivity horns ensure accurate coverage.

  • Configuration: 2 Way
  • Frequency response: 75Hz – 20kHz -6dB
  • Low frequency woofer: 2x 6.5
  • High frequency driver: 1x 1
  • Input connector: 2x Speakon
  • Net Dimension (WxHxD): 190 x 560 x 260mm
  • Net Weight: 11.8kg
  • Transport Dimension (WxHxD): 290 x 660 x 360mm
  • Transport Weight: 13.8kg
  • Recommended Amplifier: 400w RMS
  • Long term power: 200w
  • Short term power: 800w
  • Recommended HP filter: 60Hz 12-24dB/Oct
  • Maximum SPL continuous/peak: 123/127dB
  • Nominal Impedance: 8 Ohm
  • Sensitivity (@1W/1m): 97dB
  • Dispersion (H x V): 70? x 50? rotatable
