Technical Specification
- 48 Mic Preamps on XLR with Phantom Power status LEDs
- 16 XLR Line Outs
- 96kHz operation
- Rack-mounted (5u) or shelf/floor operation
- Plug and Play – no IP addressing required
- Compatible with CAT5e (or higher) cables of up to 100m

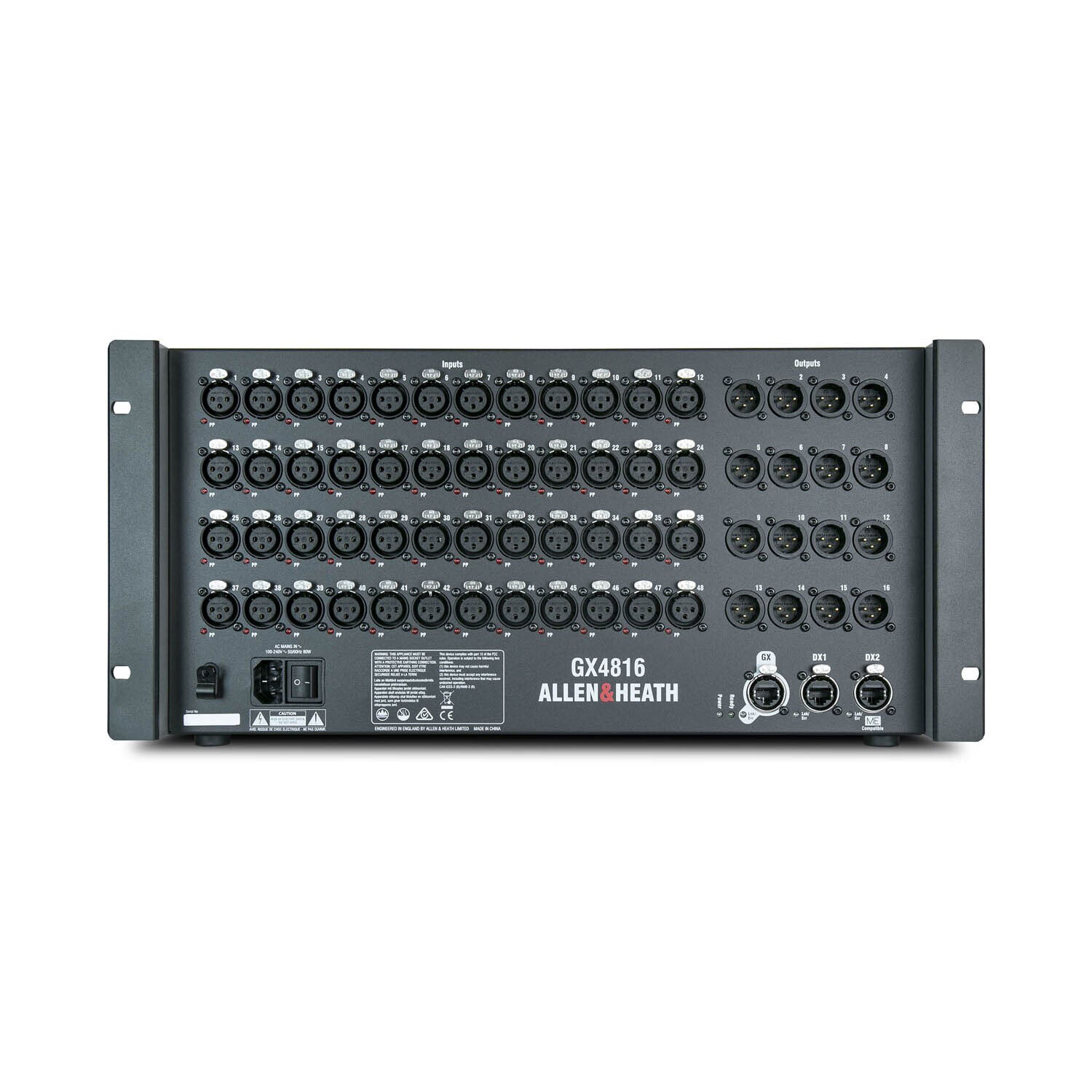

GX4816 I/O 96kHz 48in/16out
GX4816 I/O Expander 96kHz 48in/16out for dLive and SQ Consoles 5U
48 XLR Input / 16 XLR Output Portable GX Expander w/ DX Sockets
GX4816 is a 96kHz audio expander that provides high-input-count remote expansion for SQ, Avantis and dLive mixing systems, and for the AHM-64 audio matrix processor.
Each GX4816 is loaded with 48 dLive mic preamps with independent Phantom Power LED indicators, plus 16 XLR line outputs. Additionally, 2 DX ports are provided for connection to up to 4 DX Expanders for further I/O expansion. Connection to a ME Personal Mixing System is possible via the DX2 socket when used with SQ or Avantis.
GX4816 connects via a single Cat5e cable to an SLink socket on a SQ, Avantis or AHM-64, or to a gigaACE audio network card on a dLive system.
Connection to DX Expanders and the ME Personal Mixing System is also over Cat5e cable.
Please Enquire for Prices
