Technical Specification

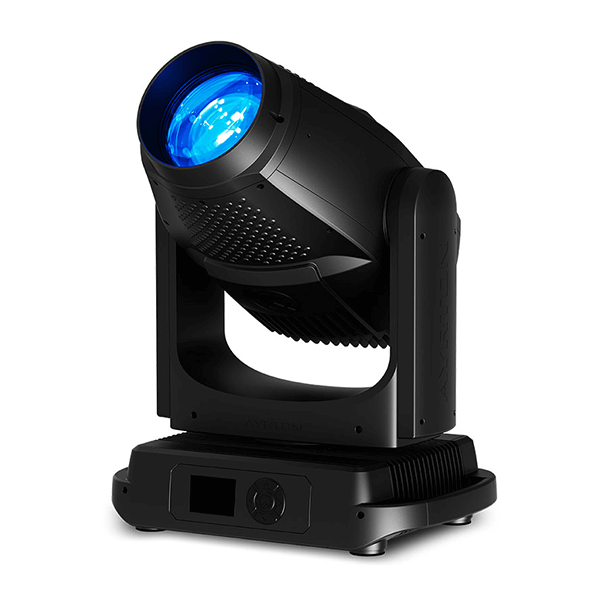

- Ayrton PERSEO PROFILE – Technical Specifications
- Optics
- High-resolution 13-element zoom system with 8:1 ratio
- Beam aperture: 7° to 58°
- Fast motorized linear zoom for smooth transitions
- Tempered, anti-reflective coated lenses for maximum clarity
- 148mm frontal lens for enhanced performance
- Light Source
- Perseo Profile S
- 40,000 lumens, 8200K white light engine
- Total luminaire output: Up to 30,000 lumens
- Color temperature output: 6900K
- CRI: Greater than 70
- Perseo Profile TC
- 34,000 lumens, 7000K white light engine
- Total luminaire output: Up to 26,000 lumens
- Color temperature output: 6500K
- CRI: Greater than 90
- Common Features
- Rated life (L70): Up to 40,000 hours
- Flicker-free operation, ideal for TV and video applications
- Movement
- Extremely accurate positioning
- Moving-head control with 8-bit or 16-bit resolution
- High-resolution stepper motors for smooth movement
- Pan & Tilt automatic repositioning
- Range: 540° (Pan), 263° (Tilt)
- Color System
- Advanced CMY color mixing system
- Variable CTO for color temperature correction
- Fixed color wheel with six complementary colors
- Gobo System
- Rotating gobo wheel: 7 high-precision glass gobos + open position
- Adjustable-speed rotation in both directions
- Fixed gobo wheel: 11 high-precision glass gobos (special shape) + open position
- Rotating gobo diameter: 27mm
- Image diameter: 22mm
- Gobo thickness: 1.1mm
- Framing System
- 4 individually positionable shutter blades covering 100% of the surface
- Framing system module rotation: ± 45°
- Iris Diaphragm
- Fast iris diaphragm with adjustable dynamic effects
- Iris range: 15% to 100% open
- Frost Filters
- Two frost filters: Light & Heavy
- Effects & Animation
- Focusable animation wheel with continuous bi-directional rotation
- Two rotating & indexable prisms:
- 5-facet circular prism
- 4-facet linear prism
- Dimming & Strobe
- Electronic dimmer from 0-100%, maintaining color accuracy
- Strobe effect: Adjustable speed from 1 to 25 flashes per second
- Software Features
- Local & remote DMX addressing via LCD control panel or RDM DMX controller
- Information menu:
- Hour counter
- Temperature monitoring
- Software version details
- Hardware Features
- Graphic LCD display with flip function for easy control
- 5 menu buttons for function settings
- Overheat protection system
- Integrated wireless CRMX TiMo™ RDM receiver (LumenRadio™)
- Connectivity & IP Ratings
- IP65 Version
- IP65 XLR 5-pin DMX IN/OUT
- IP65 RJ45 IN/OUT for ArtNet™
- IP65 powerCON TRUE1 male connector
- IP66 Version
- IP66 DMX IN/OUT tails to bare end
- IP66 Ethernet IN/OUT tails to bare end
- IP66 Power tail to bare end
- Control & Protocols
- DMX 512 protocol via IP65 DMX cable or wireless system
- DMX-RDM compatible
- Standalone & Master/Slave modes
- ArtNet™ & sACN protocols via IP65 Ethernet
- Local control panel with IP65 LCD display
- 4 DMX modes: 38 to 61 DMX channels
- Power Supply
- Electronic power supply with active PFC
- Input voltage: 100-240V, 50/60Hz
- Maximum power consumption: 800W
- Cooling System
- Advanced liquid cooling system
- IP68 self-adjusting variable speed fans for quiet operation
- User-selectable Silent Mode
- Overheat safety protection
- Housing & Build Quality
- Die-cast aluminum moving-head skeleton
- Die-cast aluminum base & heatsinks
- Molded die-cast aluminum covers
- Dual side handles for easy transportation
- Four heavy-duty feet for stability
- IP65 protection rating
- Exterior finish: Black (Carbon)
- Installation & Mounting
- Fastening bracket system: Two Omega ¼ turn brackets
- Four ¼ turn locking fittings for Omega brackets
- Safety cable attachment point
- Operating Conditions
- All-position mounting: Floor-standing or fixed to support
- Max ambient temperature: 45°C (113°F)
- Min ambient temperature: -20°C (14°F)
- Minimum usage distance: 2.0m (6.56ft)
- Physical Dimensions & Weight
- Product dimensions: 490 x 710 x 330mm (L x H x D)
- Flight-case foam dimensions: 655 x 590 x 555mm (L x H x D)
- Weight: 38.8 kg
